fat_format.c File Reference

#include <string.h>
#include "fat_defs.h"
#include "fat_access.h"
#include "fat_table.h"
#include "fat_write.h"
#include "fat_string.h"
#include "fat_misc.h"
#include "fat_format.h"

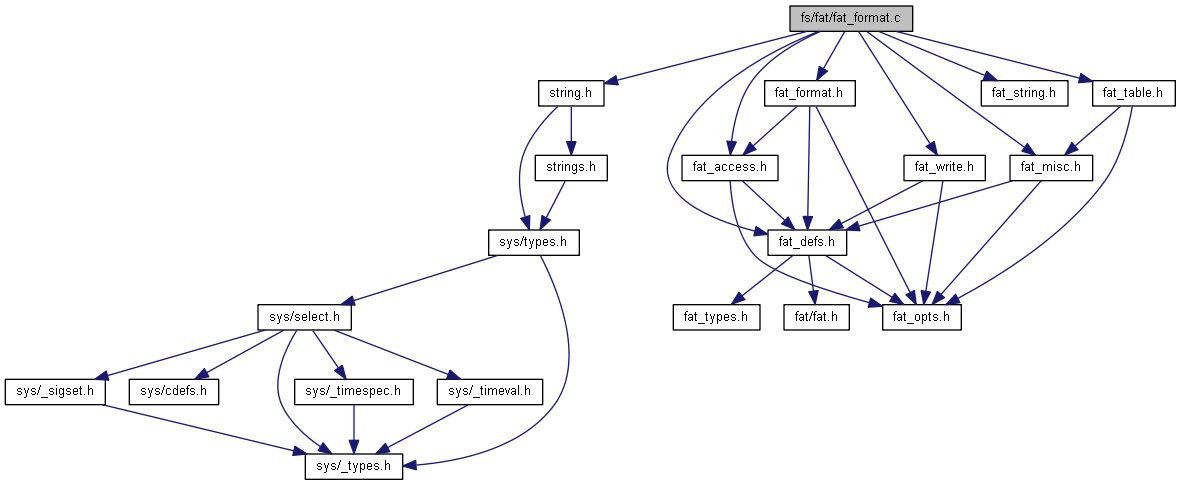

Include dependency graph for fat_format.c:

Go to the source code of this file.

Data Structures
struct	sec_per_clus_table

Functions
int	fatfs_format (struct fatfs *fs, uint32 volume_sectors, const char *name)
int	fatfs_format_fat16 (struct fatfs *fs, uint32 volume_sectors, const char *name)
int	fatfs_format_fat32 (struct fatfs *fs, uint32 volume_sectors, const char *name)

Variables
struct sec_per_clus_table	_cluster_size_table16 []
struct sec_per_clus_table	_cluster_size_table32 []

Function Documentation

fatfs_format()

int fatfs_format	(	struct fatfs *	fs,
		uint32	volume_sectors,
		const char *	name
	)

Definition at line 524 of file fat_format.c.

References fatfs_format_fat16(), fatfs_format_fat32(), and name.

Referenced by fl_format().

Here is the call graph for this function:

fatfs_format_fat16()

int fatfs_format_fat16	(	struct fatfs *	fs,
		uint32	volume_sectors,
		const char *	name
	)

Definition at line 426 of file fat_format.c.

References FAT32_INVALID_CLUSTER, FAT_INIT_MEDIA_ACCESS_ERROR, FAT_TYPE_16, and fatfs_fat_init().

Referenced by fatfs_format().

Here is the call graph for this function:

fatfs_format_fat32()

int fatfs_format_fat32	(	struct fatfs *	fs,
		uint32	volume_sectors,
		const char *	name
	)

Definition at line 475 of file fat_format.c.

References FAT32_INVALID_CLUSTER, FAT_INIT_MEDIA_ACCESS_ERROR, FAT_TYPE_32, and fatfs_fat_init().

Referenced by fatfs_format().

Here is the call graph for this function:

Variable Documentation

_cluster_size_table16

struct sec_per_clus_table _cluster_size_table16[]

Initial value:

=
{
    { 32680, 2},
    { 262144, 4},
    { 524288, 8},
    { 1048576, 16},
    { 2097152, 32},
    { 4194304, 64},
    { 8388608, 128},
    { 0 , 0 }
}

Definition at line 52 of file fat_format.c.

_cluster_size_table32

struct sec_per_clus_table _cluster_size_table32[]

Initial value:

=
{
    { 532480, 1},
    { 16777216, 8},
    { 33554432, 16},
    { 67108864, 32},
    { 0xFFFFFFFF, 64},
    { 0 , 0 }
}

Definition at line 64 of file fat_format.c.
