#include <fat_access.h>

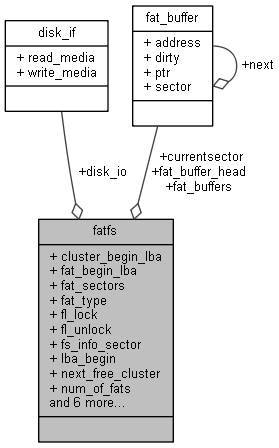

Collaboration diagram for fatfs:

Data Fields
uint32	cluster_begin_lba

struct fat_buffer	currentsector

struct disk_if	disk_io

uint32	fat_begin_lba

struct fat_buffer *	fat_buffer_head

struct fat_buffer	fat_buffers [1]

uint32	fat_sectors

tFatType	fat_type

void(*	fl_lock )(void)

void(*	fl_unlock )(void)

uint16	fs_info_sector

uint32	lba_begin

uint32	next_free_cluster

uint8	num_of_fats

uint16	reserved_sectors

uint16	root_entry_count

uint32	rootdir_first_cluster

uint32	rootdir_first_sector

uint32	rootdir_sectors

uint8	sectors_per_cluster

Detailed Description

Definition at line 57 of file fat_access.h.

Field Documentation

◆ cluster_begin_lba

uint32 fatfs::cluster_begin_lba

Definition at line 61 of file fat_access.h.

◆ currentsector

struct fat_buffer fatfs::currentsector

Definition at line 83 of file fat_access.h.

◆ disk_io

struct disk_if fatfs::disk_io

Definition at line 76 of file fat_access.h.

◆ fat_begin_lba

uint32 fatfs::fat_begin_lba

Definition at line 65 of file fat_access.h.

◆ fat_buffer_head

struct fat_buffer* fatfs::fat_buffer_head

Definition at line 86 of file fat_access.h.

◆ fat_buffers

struct fat_buffer fatfs::fat_buffers[1]

Definition at line 87 of file fat_access.h.

◆ fat_sectors

uint32 fatfs::fat_sectors

Definition at line 68 of file fat_access.h.

◆ fat_type

tFatType fatfs::fat_type

Definition at line 73 of file fat_access.h.

◆ fl_lock

void(* fatfs::fl_lock) (void)

Definition at line 79 of file fat_access.h.

◆ fl_unlock

void(* fatfs::fl_unlock) (void)

Definition at line 80 of file fat_access.h.

◆ fs_info_sector

uint16 fatfs::fs_info_sector

Definition at line 66 of file fat_access.h.

◆ lba_begin

uint32 fatfs::lba_begin

Definition at line 67 of file fat_access.h.

◆ next_free_cluster

uint32 fatfs::next_free_cluster

Definition at line 69 of file fat_access.h.

◆ num_of_fats

uint8 fatfs::num_of_fats

Definition at line 72 of file fat_access.h.

◆ reserved_sectors

uint16 fatfs::reserved_sectors

Definition at line 71 of file fat_access.h.

◆ root_entry_count

uint16 fatfs::root_entry_count

Definition at line 70 of file fat_access.h.

◆ rootdir_first_cluster

uint32 fatfs::rootdir_first_cluster

Definition at line 62 of file fat_access.h.

◆ rootdir_first_sector

uint32 fatfs::rootdir_first_sector

Definition at line 63 of file fat_access.h.

◆ rootdir_sectors

uint32 fatfs::rootdir_sectors

Definition at line 64 of file fat_access.h.

◆ sectors_per_cluster

uint8 fatfs::sectors_per_cluster

Definition at line 60 of file fat_access.h.

The documentation for this struct was generated from the following file:

fs/fat/fat_access.h
