pbuf.c File Reference

#include "net/opt.h"
#include "net/stats.h"
#include "net/def.h"
#include "net/mem.h"
#include "net/memp.h"
#include "net/pbuf.h"
#include "net/sys.h"
#include <string.h>

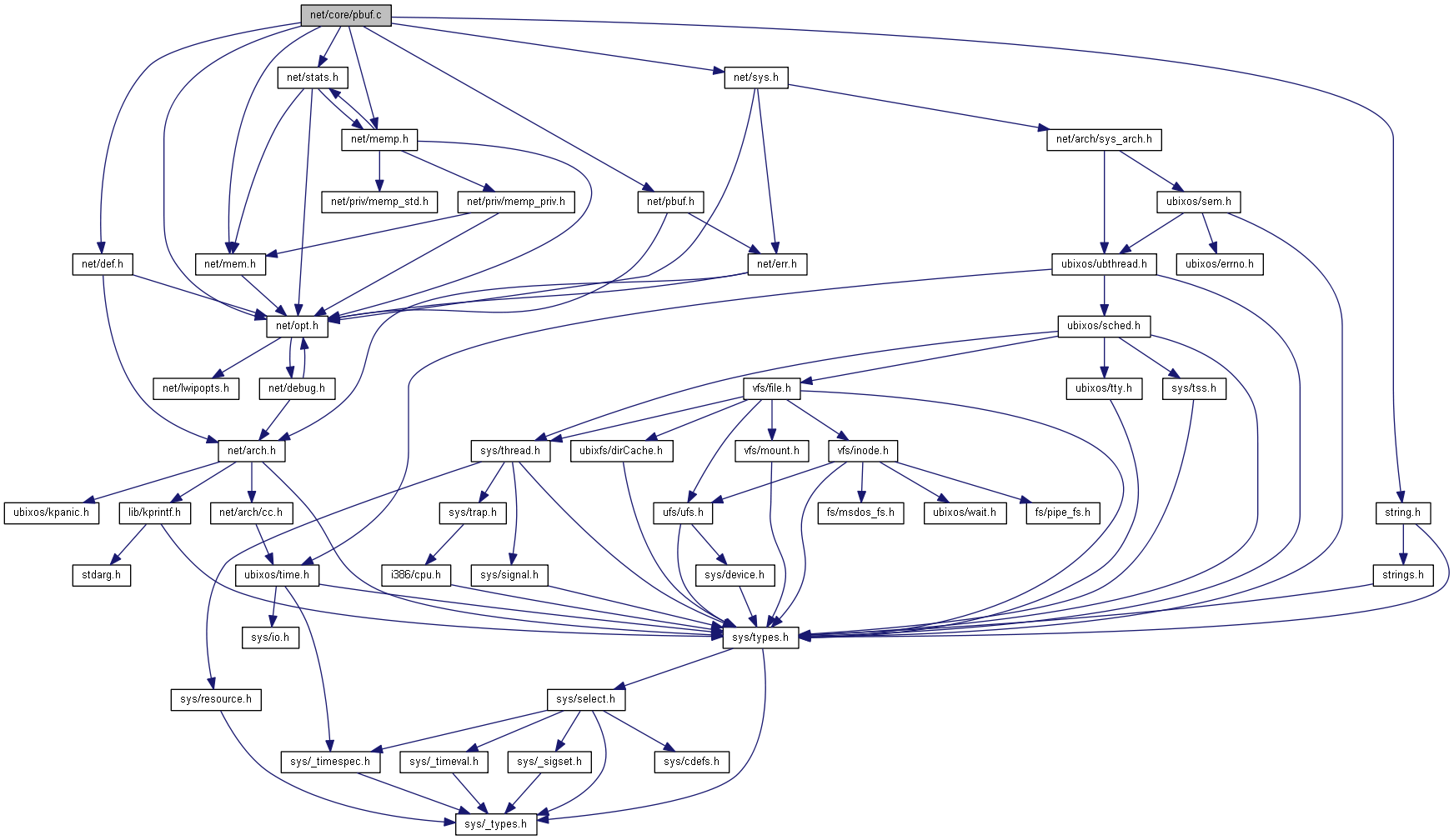

Include dependency graph for pbuf.c:

Go to the source code of this file.

Macros
#define	PBUF_POOL_BUFSIZE_ALIGNED   LWIP_MEM_ALIGN_SIZE(PBUF_POOL_BUFSIZE)
#define	PBUF_POOL_IS_EMPTY()
#define	SIZEOF_STRUCT_PBUF   LWIP_MEM_ALIGN_SIZE(sizeof(struct pbuf))

Functions
struct pbuf *	pbuf_alloc (pbuf_layer layer, u16_t length, pbuf_type type)
void	pbuf_cat (struct pbuf *h, struct pbuf *t)
void	pbuf_chain (struct pbuf *h, struct pbuf *t)
u16_t	pbuf_clen (const struct pbuf *p)
struct pbuf *	pbuf_coalesce (struct pbuf *p, pbuf_layer layer)
err_t	pbuf_copy (struct pbuf *p_to, const struct pbuf *p_from)
u16_t	pbuf_copy_partial (const struct pbuf *buf, void *dataptr, u16_t len, u16_t offset)
struct pbuf *	pbuf_dechain (struct pbuf *p)
u8_t	pbuf_free (struct pbuf *p)
u8_t	pbuf_get_at (const struct pbuf *p, u16_t offset)
u8_t	pbuf_header (struct pbuf *p, s16_t header_size_increment)
u8_t	pbuf_header_force (struct pbuf *p, s16_t header_size_increment)
u16_t	pbuf_memcmp (const struct pbuf *p, u16_t offset, const void *s2, u16_t n)
u16_t	pbuf_memfind (const struct pbuf *p, const void *mem, u16_t mem_len, u16_t start_offset)
void	pbuf_put_at (struct pbuf *p, u16_t offset, u8_t data)
void	pbuf_realloc (struct pbuf *p, u16_t new_len)
void	pbuf_ref (struct pbuf *p)
struct pbuf *	pbuf_skip (struct pbuf *in, u16_t in_offset, u16_t *out_offset)
u16_t	pbuf_strstr (const struct pbuf *p, const char *substr)
err_t	pbuf_take (struct pbuf *buf, const void *dataptr, u16_t len)
err_t	pbuf_take_at (struct pbuf *buf, const void *dataptr, u16_t len, u16_t offset)
int	pbuf_try_get_at (const struct pbuf *p, u16_t offset)

Detailed Description

Packet buffer management

Definition in file pbuf.c.

Macro Definition Documentation

PBUF_POOL_BUFSIZE_ALIGNED

#define PBUF_POOL_BUFSIZE_ALIGNED   LWIP_MEM_ALIGN_SIZE(PBUF_POOL_BUFSIZE)

Definition at line 132 of file pbuf.c.

PBUF_POOL_IS_EMPTY

#define PBUF_POOL_IS_EMPTY

(

)

Definition at line 135 of file pbuf.c.

SIZEOF_STRUCT_PBUF

#define SIZEOF_STRUCT_PBUF   LWIP_MEM_ALIGN_SIZE(sizeof(struct pbuf))

Definition at line 129 of file pbuf.c.

Function Documentation

pbuf_clen()

u16_t pbuf_clen

(

const struct pbuf *

p

)

Count number of pbufs in a chain

Parameters

p	first pbuf of chain

Returns

the number of pbufs in a chain

Definition at line 801 of file pbuf.c.

References pbuf::next, and NULL.

pbuf_dechain()

struct pbuf* pbuf_dechain

(

struct pbuf *

p

)

Dechains the first pbuf from its succeeding pbufs in the chain.

Makes p->tot_len field equal to p->len.

Parameters

p	pbuf to dechain

Returns

remainder of the pbuf chain, or NULL if it was de-allocated.

Note

May not be called on a packet queue.

Definition at line 900 of file pbuf.c.

References pbuf::len, LWIP_ASSERT, LWIP_DBG_TRACE, LWIP_DEBUGF, pbuf::next, NULL, PBUF_DEBUG, pbuf_free(), and pbuf::tot_len.

Here is the call graph for this function:

pbuf_header()

u8_t pbuf_header	(	struct pbuf *	p,
		s16_t	header_size_increment
	)

Adjusts the payload pointer to hide or reveal headers in the payload.

Adjusts the ->payload pointer so that space for a header (dis)appears in the pbuf payload.

The ->payload, ->tot_len and ->len fields are adjusted.

Parameters

p	pbuf to change the header size.
header_size_increment	Number of bytes to increment header size which increases the size of the pbuf. New space is on the front. (Using a negative value decreases the header size.) If hdr_size_inc is 0, this function does nothing and returns successful.

PBUF_ROM and PBUF_REF type buffers cannot have their sizes increased, so the call will fail. A check is made that the increase in header size does not move the payload pointer in front of the start of the buffer.

Returns

non-zero on failure, zero on success.

Definition at line 665 of file pbuf.c.

pbuf_header_force()

u8_t pbuf_header_force	(	struct pbuf *	p,
		s16_t	header_size_increment
	)

Same as pbuf_header but does not check if 'header_size > 0' is allowed. This is used internally only, to allow PBUF_REF for RX.

Definition at line 675 of file pbuf.c.

pbuf_strstr()

u16_t pbuf_strstr	(	const struct pbuf *	p,
		const char *	substr
	)

Find occurrence of substr with length substr_len in pbuf p, start at offset start_offset WARNING: in contrast to strstr(), this one does not stop at the first \0 in the pbuf/source string!

Parameters

p	pbuf to search, maximum length is 0xFFFE since 0xFFFF is used as return value 'not found'
substr	string to search for in p, maximum length is 0xFFFE

Returns

0xFFFF if substr was not found in p or the index where it was found

Definition at line 1432 of file pbuf.c.

References NULL, pbuf_memfind(), strlen(), and pbuf::tot_len.

Here is the call graph for this function:
